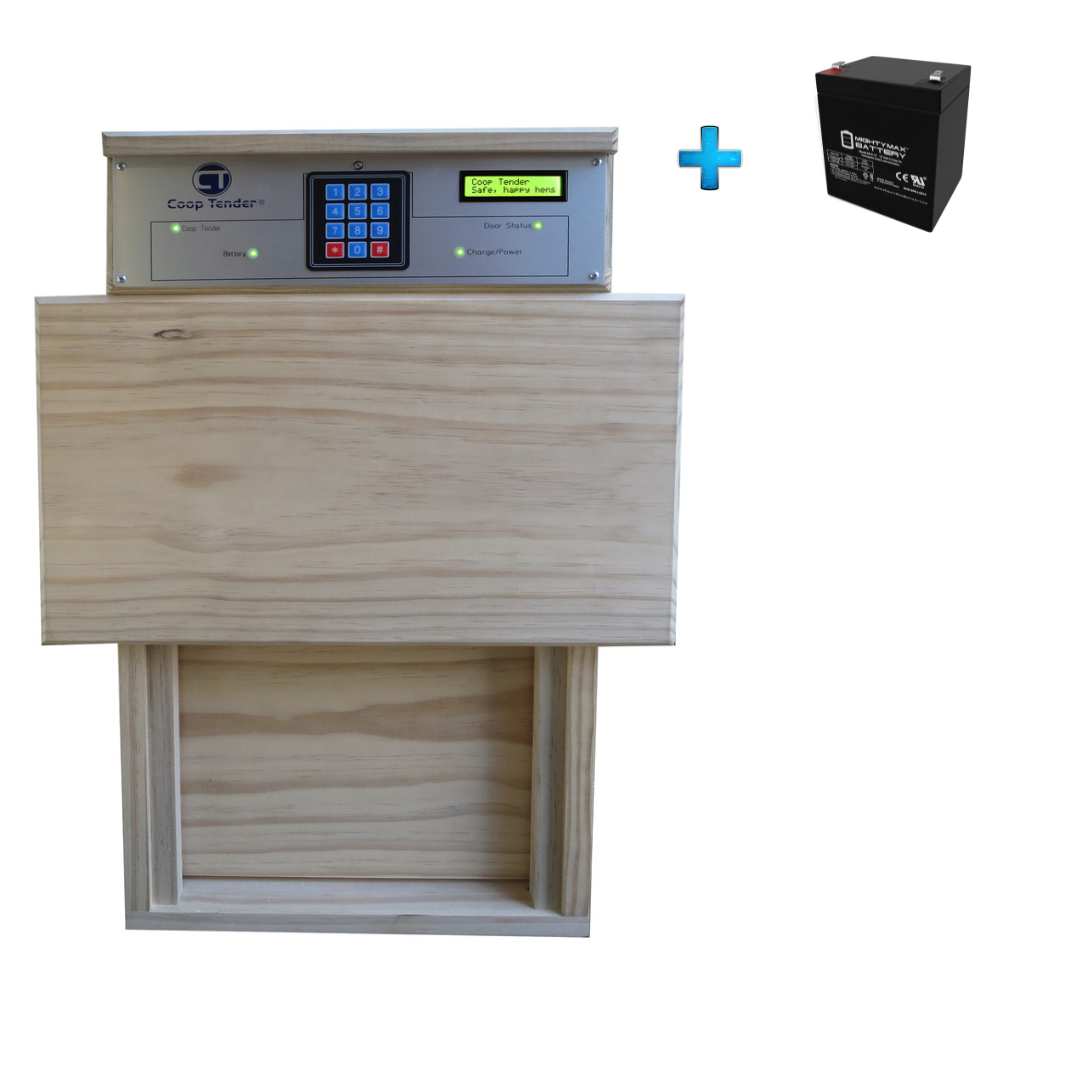

Coop Tender Automatic Door For Chicken Coop With Battery Backup

• Automatically Opens and Closes your Coop Door.

• Three modes of operation: Dawn-to-Dusk (A.K.A. Dusk-to-Dawn), Schedule, or Manual.

• Internet Enabled: Internet Wi-Fi module sold separately.

• Solar Coop Door Operation: Connect the optional coop door solar module to operate using energy from the sun.

• Programmable Freeze Protect - door stays closed when it's dangerously cold outside, working to protect your poultry investment.

• Programmable dawn and dusk delays - delay opening and closing for any amount of time (1 minute to 10 hours).

• Microcontroller digital control eliminates frozen mechanical components in winter.

• Solid Steel Acme threaded screw drive: True door lockdown. Predators are not able to open it when it is closed.

• Simple installation.  Slide door into cutout in coop, secure with 4 mounting screws (included).

• Manual Control:  Open and close the door manually using the keypad menu. With the optional Wi-Fi module, use the Universal Web App remote control.

• Solid indoor/outdoor rated lumber construction - Treated with Rain Guard non-toxic wood sealer.

• 100% predator proof!  Have peace of mind knowing that your hens are safe at night. Door cannot be opened by raccoons, cougars, bobcats, mink, coyotes, opossums, skunks or any other nighttime predator.

• Fully assembled.

Below are indepth descriptions of Coop Tender Automatic Chicken Door options.

Please see the Features tab for the exact features included in your product as they vary by product.

Cloud Service Subscription - 1 Year Subscription

• Wi-Fi Radio Module activation, setup, allocation, and hosting service
• SMS and email door status and alert notifications
• Key Metric data storage
  • Wi-Fi signal strength
  • Door status
  • Power / battery voltage
  • Coop temperature
  • Ambient daylight value
• Data access and transmission
  • Key Metric historic data
  • Real-time metrics and data
• Universal Web App™
  • Mobile Optimized – access from any mobile device or computer with an Internet connection and browser.
  • Remote Door Programming and settings maintenance
  • Remote Door Operation
  • Key Metric charts
• Firmware updates
• Technical support
•  You will receive a $0 invoice for the Cloud Services Subscription with subsequent annual renewals billed at $20 through Automatic Chicken Coop Door - Coop Tender.

Automatic Chicken Door Controller

• AC electric powered
• Optionally operate using solar power
• Internet Wi-Fi Enabled (Internet Wi-Fi Radio Module sold separately)
• Solid 1 inch dimensional wood for long lasting durability
• Ultra-low power consumption - will run for days off of a backup battery
• 1 year manufacturer's limited warranty
• Treated with non-toxic, lifetime environmentally safe wood treatment
• LED alert status indicators for chicken door and battery charge level
• LCD provides constant status messages
• Keypad input for system customization settings
• Manual door override in case you need to open or close the coop door outside of normal times

  What's included

  • Pre-assembled Coop Tender automatic chicken door micro-controller circuit board
  • Wooden controller cabinet
  • Metal Faceplate
  • LCD Display - System status messages
  • Keypad -System programming
  • LED status lights - At-a-Glance Coop Tender, Battery, Charge and Door status
  • AC / DC electrical power supply
  • Temperature module - freeze protect and temperature based warnings
  • Clock module - control schedule based automatic coop door operation
  • Light sensor - control dawn-to-dusk based automatic coop door operation
  • Fully Assembled

  You supply

  • Motor or other drive mechanism to open and close the door
  • Limit switches - hooked to 3 wires on the controller (common, door closed, door open)
  • Door assembly - your own mechanical invention
  • 12 Volt backup battery or other means of powering the controller if AC electrical power is out

Solar Module

Take your automatic chicken coop door "off the grid".  With our solar module, you can run your automatic chicken coop door with energy from the sun.

The solar panel consists of an array of panels providing 10 Watts of charging power to the 12 Volt SLA battery. Coop Tender controls the battery charge so that it does not overcharge or charge too quickly.

Solar panel comes un-mounted.  It may be mounted to the mounting board of your coop door if it faces south, or install in a suitable south-facing location.

Coop Tender Automatic Chicken Doors incorporate a built-in charge controller to ensure that battery overcharging does not occur.

Easily monitor the battery with Coop Tender's status display and "view at a distance" status lights.

12 Volt 5Ah SLA Backup Battery is included.  The battery fits inside of the controller compartment and will run the door for up to 1 week without being charged.

1. WiFi Module consumes additional 40 milliAmps of power
2. 10 Watt solar panel + 12 Volt 5Ah SLA battery sufficient to operate the system in most parts of the U.S.*

*See the Direct Normal Solar Irradiance map below to check average Irradiance (solar energy) available in your location. The map shows a gradient color coded chart with 9 levels of Irradiance measured in kWh/M2/Day. If you are located in an area which receives 4.4 kWh/m2/Day or less, you may need to add a second solar panel to increase surface area of energy collection.

In the map above, the light yellow color gradient represents an area with low solar energy.

What's Included:

• 10 Watt Solar Panel
• 12 Volt 5Ah SLA Battery

Mounting hardware not included

Solar panel has 4 holes on the back of the frame which allows for a variety of mounting options.  You can make your own mounting brackets out of wood or purchase mounting hardware from your local hardware store.

Certified Humane Door

The Coop Tender Certified Humane Automatic Chicken Coop Door is suitable for all chicken breeds and provides an opening which is 21 inches wide by 18 inches high. The opening size meets the requirements defined in " Humane Farm Animal Care-Animal Care Standards-2014 Standards: Egg Laying Hens" which states: "It is recommended that exits are at least 18" (46 cm) high and 21" (53 cm) wide."

Effortlessly automate your chicken coop with our fully assembled door. Made with durable solid wood and a 5/8 inch steel worm drive, it's built to last. Use your own controller or design one to integrate with our solid state magnetic limit switches and high-torque gear motor. Keep your feathered friends safe and secure with ease.

• 18 in. (46 cm) H x 21 in. (53 cm) W door opening.
• Constructed with Solid Indoor / Outdoor rated 1 inch boards - no plywood.
• Treated with Rain Guard non-toxic wood sealer.
• High-torque gear motor - Installed
• Solid Steel Acme Threaded Screw / Worm Drive - Installed
• Solid State Magnetic Limit Switches - Installed

Weather Proof Temperature Module

The weatherproof digital Temperature Module provides Coop Tender door controllers with accurate temparature monitoring.

• Weather Proof: Operates inside or outside of your chicken coop
• Temperature range: -67°F to +257°F (-55°C to 125°C)
• Sensor enclosure: Stainless steel
• Cable length: 30 inches

Temperature module comes pre-installed on all of our automatic chicken coop doors.

Internet WiFi Module

Monitor and remote control your automatic chicken coop door from the Internet!

Coop Tender® Internet Wi-Fi Module and Universal Web App™ is a combination of micro-electronics and Internet computer software which permits control, configuration and monitoring of your Coop Tender Automatic Chicken Coop Door - from anywhere in the world with an Internet connection and browser.

The Wi-Fi radio module connects to your Coop Tender Automatic Chicken Coop Door. After connected to your WiFi network*, the Coop Tender Universal Web App may be accessed using any smartphone, tablet or computer with an Internet connection and browser.

Connects to 802.11 b, g and n networks and supports WEP, WPA and WPA2 security protocols.

Key Features:

• Monitor and Control your door from anywhere in the world with a web browser and Internet connection
• Configure Door Control settings - great for changing open and close times if you are using a time based schedule
• View key door metric charts
  • Ambient Light
  • Door Status
  • Temperature
  • Battery Charge
• Real time coop door status
  • Door Status
  • Coop Temperature
  • Door Control Mode
• Receive SMS and email alerts
• Door status changes (Opening, open, closing and closed)
• Battery voltage warnings
• Accessory status changes - with optional Coop Accessory Control module
• Predator motion alerts - with optional Chicken Coop Predator Motion module

Coop Tender Universal Web App utilizes the latest in mobile optimized web apps to provide a consistent interface and usability on any device with an Internet connection and browser.

Facebook, Google, or Twitter social login eliminates forgotten user names and passwords.  Your social account is your gateway to accessing your door from the Internet.

The home page provides at-a-glace status for as many doors as you have installed with a Coop Tender® Internet WiFi Module.

View and download key metric charts (Door Status, Daylight Value, Temperature and System Voltage:

Update door programming with intuitive mobile optimized web app interface controls:



Specifications:

Operating Voltage	5 Volts DC
DC Power consumption	40mA
Dimensions	54mm W x 41mm H x 79mm L 2.1 in. W x 1.6 in. H x 3.1 in. L
Operating temperature	-20 to +80 °C -4 to 176 ℉



Optional WiFi Module Accessories: These optional accessories plug into the Internet WiFi Module.

Coop Accessory Control Module:

Hen Light and Coop / Security Light:

Each light automatically switches on based on the ambient light value reported by Coop Tender or by Schedule.  Light stays on for the duration set in the web app.

• Winter hen laying light
• Security Light
• Inside coop evening ambient lighting
• Outside coop evening ambient lighting

Coop Ventilation:

Controls ventilation fan power when coop temperature is too warm giving your hens the comfort they deserve.

Ventilation fan is automatically turned on when the coop temperature rises above the temperature configured via the Coop Tender Universal Web app.

Coop Heat:

Controls up to 1500 Watts AC electric heaters or water deicers to protect your livestock from dangerously freezing temperatures in the winter.

Heat is automatically turned on when the coop temperature falls below the temperature configured via the CT Internet Wi-Fi Web App.

100% solid state - no mechanical relays which are pone to failure over time are used.

Note: Accessories (lights, fan, heater) not included

Predator Motion Detect Module:

Actively deters predators and alerts you of their presence!

Coop Tender Predator Motion Sensor Module automatically arms when the door is closed.

When predator motion is sensed, the system goes into Predator Alert Mode:

• Lights on module flash red for 30 seconds - working to scare potential predators away
• Activates "Security Light": Integrates with the Coop Tender Accessory and Heat Control Module. Automatically switches the Security Light on for 1 minute - the bright light will further scare the predator away
• Sends SMS and email Predator Motion Alert - informing you that your hens might be in danger!

Requirements:

• Coop Tender Automatic Chicken Door, Large Automatic Chicken Door, Extra Large Automatic Chicken Door or Automatic Chicken Door Controller.
• An 802.11 b/g or n network with a signal which is within range of your chicken coop.
• An iPhone or Android smartphone to connect the module to your WiFi network.  After connecting a smartphone is not required.
• A Cloud Service Subscription - a 1-year subscription is included with purchase.

IEC Power Cable

Automatic Chicken Coop Door IEC Power Cable is 5 feet long and plugs into a standard grounded AC socket or extension cord.

Cloud Service Subscription - 1 Year Subscription

•  You will receive a $0 invoice for the Cloud Services Subscription with subsequent annual renewals billed at $20 through Automatic Chicken Coop Door - Coop Tender.

• Wi-Fi Radio Module activation, setup, allocation, and hosting service
• SMS and email door status and alert notifications
• Key Metric data storage
  • Wi-Fi signal strength
  • Door status
  • Power / battery voltage
  • Coop temperature
  • Ambient daylight value
• Data access and transmission
  • Key Metric historic data
  • Real-time metrics and data
• Universal Web App™
  • Mobile Optimized – access from any mobile device or computer with an Internet connection and browser.
  • Remote Door Programming and settings maintenance
  • Remote Door Operation
  • Key Metric charts
• Firmware updates
• Technical support
